Air Duct Plasma ionizer

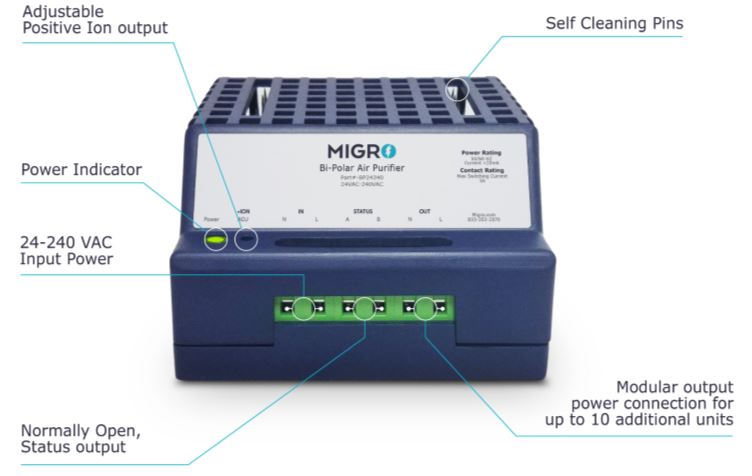

Migro in-duct air purifier is the advanced indoor air quality (IAQ) technology and capable of purifying every cubic inch of air in any central air conditioning system Designed to be effective against all three categories of indoor air pollutants: Particulates, Microbial and Gases. Will reduce common allergy triggers from particulates such as pollen, mold spores, dander, odors and dust. Remove airborne and surface bacteria & viruses, such as MRSA, e-coli, and more.   Hi-Density ion generation technologies, Plasma  Electro Magnetic Halo produces safe high levels of ionized plasma that is distributed thru the duct system  into the areas covered.  These are the same results provided in nature by large waterfalls.


Performance
• Ion density: 2.1 billion ions/cc at 2.9 cm from emitter
• Ion output: 20 billion ions/second
• Coverage: 400 square feet ( *)
• Particle effectiveness: as small as .01 micron
• Purified air flow: greater than 20 feet per minute ( *)
• Power use: less than 2 watts

 ( * Based on  HVAC duct CFM design )


Features
• Duct mounting
• Heavy duty micro pinฎneedles
• Directional air flow louvers
• Easy installation ready for HVAC
• Solid State, No moving parts
• Installation in any position



Application
• VAV Systems
• Smoke, and odor control
• Clean rooms
• A/C Duct ionizer and static control
• In line factory process control

Dimensions
Plastic PVC Enclosure NEMA4
Duct Mount: 8" x 0.5” tubing
2” L x 4.5" W x 2.5" H control box

Weight: 1.8 Lbs.

Duct Ion Generator   Comparison between Plasma and Ultraviolet systems

Features
Equipment Migro Duct Plasma Generator Duct  Ultraviolet  Lamp
HVAC  Installation 24VAC or 24VDC, Optional 120/240V 24VAC
Power consumption 2 Watts 30 Watts
Lifespan 10 Years 1200 hours
Ion Production mode Plasma Ion generation           Ultraviolet radiation
Ion Efficiency  in duct 77% direct ion generation 40% indirect ion radiation
Heat  index  0.10% Heat to be removed 8.2%  Heat to be removed
Maintenance Not Required ( Solid State) Bulb Replacement
Radiation type   Same as Nature plasma Ultraviolet
Cost $299.00 $795.00







Prices and specifications subject to change without notice
