Features - Specifications
-
Functions
-
Selectable time range 0.1 s to 10 days

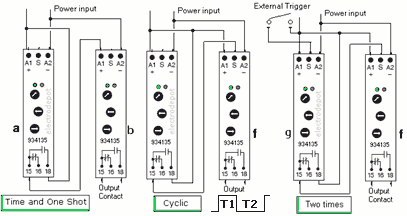

10 knob selectable functions:

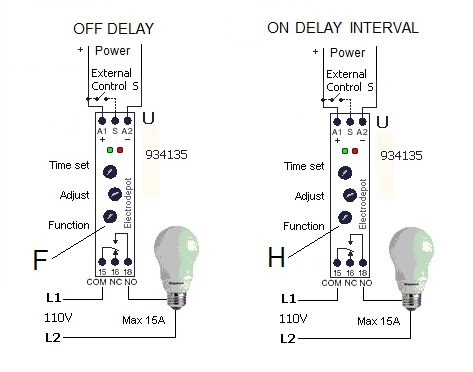

- ON delay
- OFF delay
- Interval on trigger open
- Double interval
- Delay on release
- Symmetrical recycler ON first
- Symmetrical recycler OFF first
- Special functions:
latch, toggle and single shot Automatic or manual
start Repeatability:
≤0.2%
LED indication time status and power supply
A1 & A2
Operating Voltage:
12 to 240 VAC or VDC
Start Switch Closure Time: 20 milliseconds
minimum
Power Consumption:
0.7 to 3VA. AC,
0.5 to 1.7 W. DC
|
Output
Relay Contacts, S.P.D.T.
Rating:
10 A. max. resistive 240 volts A.C
Life:
Mechanical 10,000,000 operations
Temperature:
-20C to 60C
DIN 35mm Rail Mount
UL
listed E308660
|
|
.
