FLOAT SWITCH

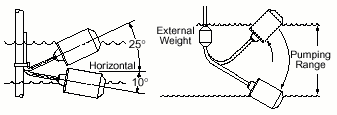

Sealed Mechanical float switch. The switch can
be installed
by tie-wrapping it to a support structure or by adding an external
weight to the cable.
SPDT contacts are included so the unit can be used to empty or fill a
tank or sump.
- SPDT
mechanical switch
- 10A contacts
rated for 1/4 hp
- Float suitable
for sewage and high temperature
- CPE-jacketed
12' (3.0m) cord
- External cord
weight available
Specifications
| Float |
ABS plastic,
Plastic Color and shape of final product may
vary |
| Temp |
160°F (70°C), cable 140°F (60°C) |
| Contact |
SPDT 10Amp 120/240 VAC,
Class 2 Pilot duty |
| Operation |
angle
25° above, 10° below horizontal |
| Dimensions |
4.6"H x 2.6" dia.
(11.75 x 6.67 cm) |
| Cable |
16/3 CPE
jacketed, 12' long |
| |
|
|
|
|
|
|
