Wireless Two Way Digital inputs / Outputs
Performance
■ 2 Mile
(3.km) line-of-sight with
with 938432 or 938450
■ Compact easy to install, Optional NEMA4 UL enclosure
■ Dry isolated contact input N/O
■ Relay output SPDT 5AMP @240V Pilot Duty
Class 2
Installation features
■ Operates in the license-free 433 MHz ISM band
■ Easy installation, No internet,
No programming
required
■ Panel or DIN mount
Applications:

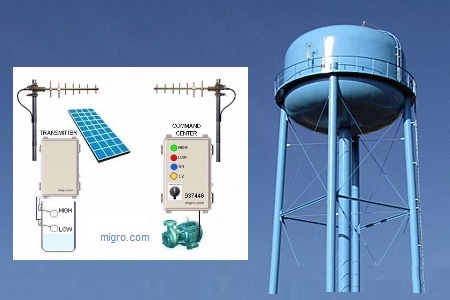

Industrial Monitoring, Pump control,
Monitor remote instruments, sensors and
detectors,
Packing and mobile system, SCADA installations,
Factory process, alarms, etc. |
SPECIFICATIONS |
|
Two antennas are required |
3
Element
Beam Yagi
Antenna
|
Frequency |
420 - 450MHz |
|
Gain |
7 dBi |
|
Vertical Beam |
30
degrees, |
|
Horizontal
|
45 degrees |
|
Impedance |
50
Ohms N - terminal |
|
Max
Power |
150
Watts |
|
VSWR |
<
1.5:1 avg. |
|
Polarization |
Vertical |
|
Wind Data |
150
mph |
With 10 Feet of 50 ohm coaxial cable
|
Hi-Gain
Antenna
Two antennas are required |
5 Element Beam Yagi
Antenna
|
Frequency |
420 - 450MHz |
|
Gain |
9 dBi |
|
Vertical Beam |
27
degrees, |
|
Horizontal
|
36 degrees |
|
Impedance |
50
Ohms |
|
Max
Power |
150
Watts |
|
VSWR |
<
1.5:1 avg. |
|
Polarization |
Vertical |
|
Wind Data |
150
mph |
With 10 Feet of 50 ohm coaxial cable
|
|
|
|
|
|
Two antennas are required
|
938438 Omni
High Gain Antenna
| Frequency |
420 - 450MHz |
| Gain |
3 dBi |
| Vertical Beam |
45
degrees,
|
| Horizontal
|
360 degrees |
| Impedance |
50
Ohms N - terminal |
| Max
Power |
250
Watts |
| VSWR |
<
1.5:1 avg. |
| Polarization |
Vertical |
| Wind Data |
150
mph |
With 10 Feet of 50 ohm coaxial cable
|
|
933020
Miniature Contactor
20A, 3 Pole, 12VDC Coil
2HP
@240V, 7.5HP @460V
1HP @120V, 20Amp AC-1,
12Amp. AC-3
Screw Clamp Terminals,
600V, 1 N.O. Aux.,
DC Coil Current Inrush/Sealed 250mA
Dim: 1.7 x 2.5 x 2.3 in
(45 x 64 x 58 mm)
|
|
|
|
| |
|
931230
DIN 12VDC Switching Power Supply
output:
12VDC / 2200mA
input:
82 - 240 VAC, 60 Hz
Operating Temperature: -10 to
70 Celsius
DC OK LED status indicator
DIN, rugged
plastic housing,
For DIN rail 32mm
UL Listed CSA, EC Certified
|
|
938111
NEMA 4X
Non Metallic Enclosure
12 x 10 x 6 inches
Include sub panel |
Specifications
|

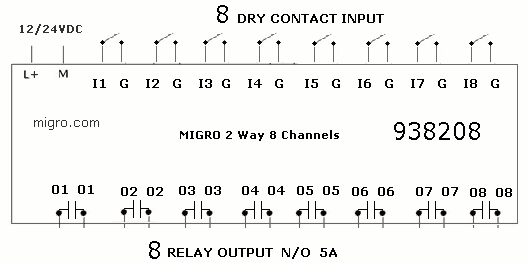

Digital Input / Output |
| Supply power |
12 or 24 VDC ±10% @ 600 mA |
| Inputs
|
N/O digital dry contact
( Normally open) |
| Outputs
|
Relay contact 5A
N/O 30VDC - 250VAC Class 2 Pilot duty |
| Output Mode |
Normal or
Retain status on power failure |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Ambient RH |
5% to 95% RH non condensing |
| Connection |
Terminal screws
DIN |
| Response |
500 msec
|
| Weight |
5.2 lb (2.40kg)
each unit |
| Dimensions |
5.5"W x 4"H x
3"D (140 x 100 x 76 mm) |
|
|
Radio System |
| Frequency |
433 MHz |
| Receiver |
Digital 16, sensitivity -110 dBm |
| Configuration |
DIP switch |
| Data rate |
19.2 KBPS |
| Antenna external |
included 3 dBi
7 inch test antenna |
| Approvals |
FCC CFR part 15.247 |
| transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
| Transmitter
Channels |
16 addresses per system
|
| Transmitter power |
per
FCC Part 15.249, 50mV/m @ 3m |
| Enclosure |
OPTIONAL NEMA 4
or Metal Enclosure |
|
