Asymmetric cyclic timer

independent time setting ON/OFF

Cycler with independent adjustable switch ON/OFF

It is used for regular room ventilation, cyclic dehumidification, light control, circulating pumps, noon signs, etc.

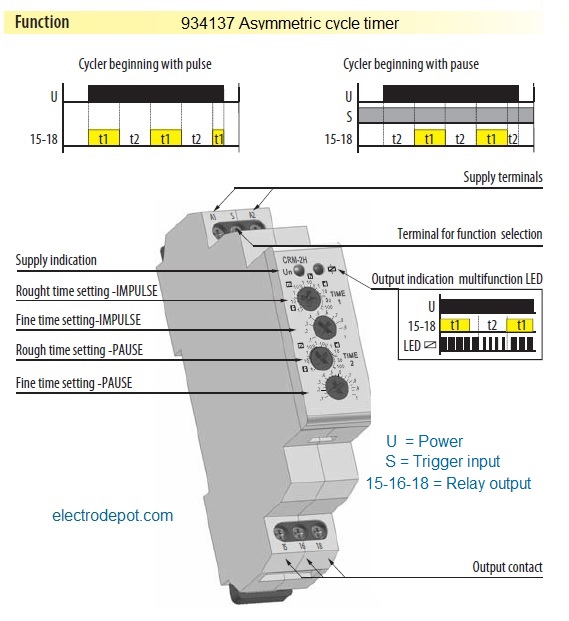

2 time functions:

• Cycler beginning with pulse
• Cycler beginning with pause

Time scale 0.1 s - 100 days divided into 10 time ranges:
 (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 hrs - 10 hrs / 0.1 day - 1 day /
1 day - 10 days / 3 days - 30 days / 10 days - 100 days)

• Voltage range: AC/DC 12 - 240 V
• Output contact: 1x changeover/SPDT 16 A
• Output indication: multifunction red LED
• 1-MODULE, DIN rail mounting

Environmental
Storage Temperature: -23°C to 70°C,
Operating Temperature: -20°C to 60°C
