365 Days, Weeks,
Days, Hours, Minutes, Times, Counters and more

Almost
anybody can write simple programs on this units.
Small
size - Large screen, saving panel space and system cost Simplicity
- Performs PLC functions, such as math, logic, timers, clocks,
smith trigger, set-reset, delay, flicker and counters, and advanced
logic functions.

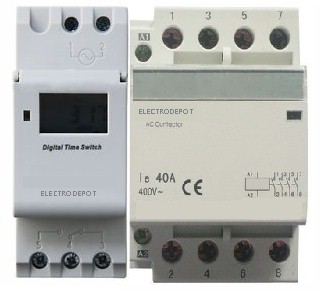

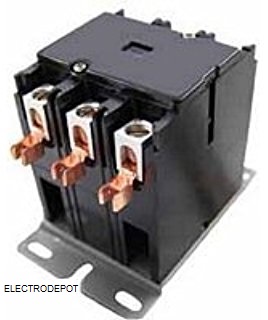

Optional Contactors
Program Example
Applications:
Lighting Schedule
Power Management
Process Control
Solar Controlled power
Energy Saving
|
Four channel 365 day regular schedule or advance single holiday and
seasonal scheduling. For HVAC equipment, external or interior lighting,
electric motors, condensers, heaters. Capable of different schedules
each day of the week. Feature Control inputs for manual override.
Smart Timer
available
in 12VDC, 24VDC and 120/220VAC
Manual Keypad program or PC programming,
with Peripheral
connection via RS-232C |
|
Display functions with integrated HMI functionality, Multiple
timers and counters |
|
The only
timer with programmable inputs for override, photocell
or automation control |
• 4 line x 12 character LCD
with keypad for program modification, preset changes,
and text
message display
• Retentive Flash Memory - programs are safely stored in memory,
even during extended power loss.
• Built-in RTC (Real-time Clock) on all models
• Super Capacitor backup, no battery required.
• Removable Memory Cartridge Optional ( Store the program in a non volatile memory )
• Store programs and timer/counter values for easy backup or
transfer
• Program Memory: 200 lines or 99 Function Blocks, 15 Timers, 15
Counters, 15 RTC, 15 Comp.
• Listing & Approvals: UL / cUL / CE
Dimensions 5 x 3.5 x 2.16 inch (126
x 106 x 60 mm).
DIN mount
Software
for Programming, Simulation, Monitoring and Testing
Included in these price
,
The Controller, Program Cable RS232
and Software
|
|
